Aircraft U-Type Tinnerman Nuts

Spring Steel Speed Nuts for Panel Edge Mounting | EU Stock

Your European Source for U-Type Tinnerman Speed Nuts

Airpart Supply stocks a comprehensive range of aircraft U-Type Tinnerman nuts in our Dublin warehouse, providing fast delivery across the European Union for maintenance organisations and aircraft operators.

U-Type Tinnerman nuts, also known as speed nuts or clip nuts, are essential aircraft hardware components designed for quick assembly on panel edges. These self-retaining fasteners grip onto the edge of sheet metal panels, providing a threaded receptacle for screws without requiring back access - making them ideal for airframe applications where access is limited.

Manufactured from spring steel for durability and reliable thread engagement, U-Type Tinnerman nuts are used extensively throughout general aviation aircraft including Cessna, Piper, and Beechcraft aircraft for securing inspection panels, access covers, fairings, and interior trim.

Our range covers screw sizes #6 and #8 with various panel thickness options to suit different installation requirements. All parts meet aviation specifications and ship from our EU warehouse.

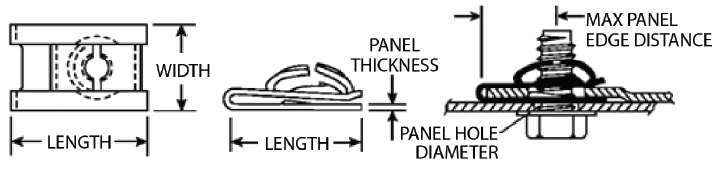

U-Type Tinnerman Nut Dimensions

U-Type Tinnerman Nut Dimensions - Length, Width, Panel Thickness, Panel Hole Diameter, Max Panel Edge Distance

Understanding U-Type Tinnerman Nut Specifications

When selecting U-Type Tinnerman nuts for your aircraft application, consider these key dimensions:

Screw Size

The thread size that the nut accepts. Must match your screw size (#6 or #8 for this range).

Panel Thickness

The range of sheet metal thickness the nut can accommodate. Critical for proper grip.

Length & Width

Overall dimensions of the nut body. Determines clearance requirements behind the panel.

Max Panel Edge Distance

Maximum distance from panel edge to screw centre. Determines how far from the edge the nut can be positioned.

Panel Hole Diameter

The size of hole required in the panel for proper nut alignment and screw clearance.

U-Type Tinnerman Nuts Catalogue

Spring Steel U-Type Tinnerman Nuts

Screw
Size		 Panel
Thickness		 Length Width Max Panel
Edge Distance		 Panel Hole
Diameter		 Part
Number
#6 .025" - .051" .610" 7/16" .281" .250" A1784-6Z1D
#6 .025" - .064" .840" 7/16" .500" .281" A1785-6Z1D
#8 .025" - .064" .730" 1/2" .343" .170" A1348-8Z1D
#8 .025" - .064" .840" 7/16" .500" .281" A1787-8Z1D
#8 .025" - .051" .610" 7/16" .281" .250" A1789-8Z1D
#6 .081" - .094" .620" 7/16" .281" .281" A1758-10Z1D

Note: Click part numbers to view pricing and availability. Additional sizes may be available on request - contact our team for special requirements.

U-Type vs Flat-Type Tinnerman Nuts

U-Type Tinnerman Nuts

Design: U-shaped clip that grips panel edges

Best for: Panel edge mounting where the nut clips over the edge of the material

Advantages: Quick installation, no back access required, self-positioning

Applications: Edge-mounted panels, fairings, access doors

Flat-Type Tinnerman Nuts

Design: Flat profile that mounts through panel hole

Best for: Mid-panel mounting where screw location is away from edges

Advantages: Lower profile, can be positioned anywhere on panel

Applications: Interior panels, instrument mounting, cabin trim

View Flat-Type Tinnerman Nuts

U-Type Tinnerman Nut Applications in Aviation

U-Type Tinnerman nuts are used extensively throughout aircraft structures where quick-release panel mounting is required. Common applications include:

Exterior Applications

  • Inspection panel covers
  • Wing root fairings
  • Engine cowling edges
  • Tail cone access panels
  • Wheel well covers

Interior Applications

  • Cabin side panels
  • Headliner edge mounting
  • Baggage compartment covers
  • Avionics access panels
  • Seat rail covers
