Aircraft Flat-Type Tinnerman Nuts
Spring Steel Speed Nuts for Mid-Panel Mounting | EU Stock
Your European Source for Flat-Type Tinnerman Speed Nuts
|
Airpart Supply stocks a comprehensive range of aircraft Flat-Type Tinnerman nuts in our Dublin warehouse, providing fast delivery across the European Union for maintenance organisations and aircraft operators. Flat-Type Tinnerman nuts, also known as flat speed nuts or panel nuts, are essential aircraft hardware components designed for quick assembly where the fastening location is away from panel edges. These self-retaining fasteners provide a threaded receptacle for machine screws while maintaining a low profile, making them ideal for airframe applications where clearance is limited. Manufactured from spring steel for durability and reliable thread engagement, Flat-Type Tinnerman nuts are used extensively throughout general aviation aircraft including Cessna, Piper, and Beechcraft aircraft for securing interior panels, instrument mounts, and cabin trim where mid-panel fastening is required. Our range covers screw sizes #4 through #10 to suit different installation requirements. All parts meet aviation specifications and ship from our EU warehouse with full traceability. |

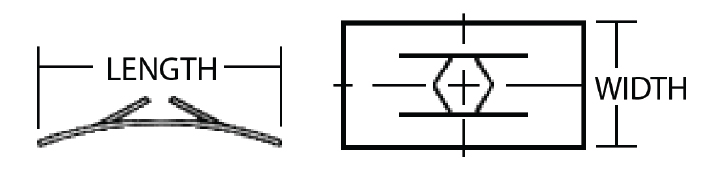

Flat-Type Tinnerman Nut Dimensions
Understanding Flat-Type Tinnerman Nut Specifications
When selecting Flat-Type Tinnerman nuts for your aircraft application, consider these key dimensions:
Screw SizeThe thread size that the nut accepts. Must match your screw size (#4, #6, #8, or #10 for this range). |
LengthOverall length of the nut body. Determines installation clearance behind the panel surface. |
WidthWidth across the nut body. Important for spacing between adjacent fasteners and panel cutout requirements. |
Flat-Type Tinnerman Nuts Catalogue
Spring Steel Flat-Type Tinnerman Nuts
| Screw Size | Length | Width | Part Number |
|---|---|---|---|
| #4 | 1/2" | 5/16" | A1776-4Z1D |
| #6 | .625" | 7/16" | A1777-6Z1D |
| #8 | 5/8" | 7/16" | A1778-8Z1D |
| #10 | 7/8" | 1/2" | A1779-10Z1D |
Note: Click part numbers to view pricing and availability. Additional sizes may be available on request - contact our team for special requirements.
Flat-Type vs U-Type Tinnerman Nuts
Flat-Type Tinnerman NutsDesign: Flat profile that mounts through panel hole Best for: Mid-panel mounting where screw location is away from edges Advantages: Lower profile, can be positioned anywhere on panel, simpler dimension selection Applications: Interior panels, instrument mounting, cabin trim, avionics covers |
U-Type Tinnerman NutsDesign: U-shaped clip that grips panel edges Best for: Panel edge mounting where the nut clips over material edge Advantages: Quick installation, no back access required, self-positioning on edge Applications: Edge-mounted panels, fairings, access doors, inspection covers |
Flat-Type Tinnerman Nut Applications in Aviation
Flat-Type Tinnerman nuts are ideal for mid-panel fastening applications where the mounting location is not at a panel edge. Common applications include:
Interior Applications
|
Structural Applications
|
Selecting the Right Flat-Type Tinnerman Nut Size
#4 Size (A1776-4Z1D)Smallest size for light-duty applications. Ideal for small interior trim pieces, light plastic panels, and decorative covers where minimal load is applied. |
#6 Size (A1777-6Z1D)Common size for general interior panel work. Suitable for cabin trim, headliners, and standard interior access panels on most light aircraft. |
#8 Size (A1778-8Z1D)Medium-duty applications requiring additional thread engagement. Recommended for instrument panel mounting, heavier interior panels, and equipment covers. |
#10 Size (A1779-10Z1D)Largest size for heavier-duty requirements. Best for floor panels, baggage compartment covers, and applications where increased holding strength is needed. |
Related Aircraft Hardware
U-Type Tinnerman NutsPanel Edge Speed NutsU-shaped speed nuts for panel edge mounting where clip-on installation is required. View U-Type Nuts |
RivnutsBlind Threaded InsertsPermanent threaded anchor points for applications requiring more secure fastening than speed nuts. View Rivnuts |
Screw KitsAircraft Screw AssortmentsComprehensive screw kits with matching sizes to pair with your Tinnerman nuts. View Screw Kits |
Countersunk WashersFlush Mounting WashersCountersunk washers for flush screw head installations on aircraft panels. View Washers |
Tapping ScrewsType A & Type BSelf-tapping screws for direct sheet metal fastening without Tinnerman nuts. View Tapping Screws |
AN3 BoltsStandard Aircraft BoltsStandard aviation bolts for structural applications requiring higher load capacity. View AN3 Bolts |
